David's 1973-74 Schwinn Le Tour - Thanks David

Hello again,

     I found this Schwinn Le Tour a while ago and was going to save it as a winter project, but David showed a lot of interest in it and we are going to restore and update it a little.  The Schwinn Le Tour was mad in Japan and is Schwinn approved.  The bike has a missing front wheel and shows a lot of dirt and grime, but for the age the paint is in fantastic condition.
     The bike is going to be completely restored, a new front wheel is on order, the old brake levers will be replaced with modern aero levers, a new seat will be installed, new gel bar tape, all new cables and housings, new tires and tubes and new brake pads.  I think that is all but I might be forgetting something.

 I am sorry for the darkness of the photos.  I still haven't got the lighting right in the new shop.




1973/74 Schwinn Le Tour Before - Side View


Crank Set Before

Fork Chrome Before

Fork Crown Before


Fork Before

Front Derailleur Before

Rear Derailleur Before

Peddle Before


I started by stripping the frame off all components.  The stem did not out to release easily  but after a few tricks all went well.  I always save and label all the cable housing, this make cutting new housing very easy.  With the frame and fork bare of parts I started cleaning the frame, the frame cleaned nicely I then moved to polishing.  I am so pleased with the paint and color after polishing, for almost 40 years old the red just pops and the chrome on the fork shines.  What is really nice and a little unusual is the fork is completely chromed top to bottom, no worries about the fork tube corroding.  I like the paint so much I had to take the frame outside in the day light to take photos.

Bike Stripped of Components

Some Grime on the Frame

Frame & Fork Cleaned & Polished

Fork Cleaned & Polished

Next I started work on the Bottom Bracket.  The bracket was dry and I wasn't expecting loose bearings, but i can find almost no ware anywhere.  Loose bearing compared to caged bearings is that you can fit more loose bearings with out the cage.  It is for better performance.  I cleaned and polished the bottom bracket cups and pregreased and packed the bearings, It is easier to pack loose bearing this way before the cups are installed.  I then installed the cups and axle.  I am very pleased with the results, the bottom bracket functions smoothly.  In the photo below with the caliper shows that one side of the axle is longer then the other.  The long side is always the drive side.

Bottom Bracket Before

Bottom Bracket Cleaned & Polished

BB Cups Prepacked

Drive Side Cup Installed

Bottom Bracket Complete

Checking for Drive Side

Next came the headset.  The headset cups show no wear at all.  This bike has hardly been ridden in its 40 years.  The headset bearings are also loose bearings.  This is a tedious step for there are 52 tiny loose bearings.  The best way is to install the bearings in the cups with a heavy coat of grease, this holds the bearings in place.  Next, you must very carefully slide the fork into place with out jarring the bearings out of place.  While holding the fork in place I then carefully threaded the headset crown into place.  The headset is turning smooth, I am happy with the results.

Headset Loose Bearings


This is where I am leaving off for the day.  Tomorrow I will be polishing the rest of the components to the headset, stem & bars and installing them.  I will also start work on the rear wheel.  If all goes well I hoped to get a start on the brake calipers also.  Thanks for looking.


Bike to This Point - Love the Shine of the Red & Chrome

Fork Chrome & Polished Red

Today I started work on the rear wheel.  It took a while and did not go well, nothing is wrong with the wheel, the bike gods where just not on my side today.  It did take quite a while to polish out the chrome, there was just a little rust, but the chrome is very thin compared to a Schwinn Continental, the thin chrome saves weight.  After polishing there are a few pit spots in the chrome but not to bad at all.

It took a little bit of force to get the free wheel off, either the threads where not greased when original installed or the grease just dried up.  With the free wheel off I removed the bearings and axle, the grease was dry but there was absolutely no wear, either this bike was never ridden or was the most maintained bike ever.  I cleaned and polished all the axle components and re installed it.  It turns smooth.

Next I removed the old tire, it was dry rotted to the rim.  I leave the old tire in place while polishing, it keeps the wheel from sliding around while I am working on it.  It took a sharp knife and a stiff wire brush to clean off all the rotted tire.

I then installed the new Kenda Gum wall tire.  It looks great against the chrome.  With the tire on the only things left to do was to polish the pie plate and clean the free wheel.  The free wheel cleaned easily and still functions very smooth.  The pie plate also polished up very nice.  A high polish on a pie plate always makes the rear wheel look so much nicer.

That is where I left off today, the rear wheel just took to much time to get to anything else.  Tomorrow I will be on to the stem and handle bars.

Rear Wheel Before

Rear Wheel Before

Rear Wheel Disassembled

Rear Wheel Axle Removed

Rear Wheel Polished & New Tire

Rear Wheel Complete


Rear Wheel On Bike

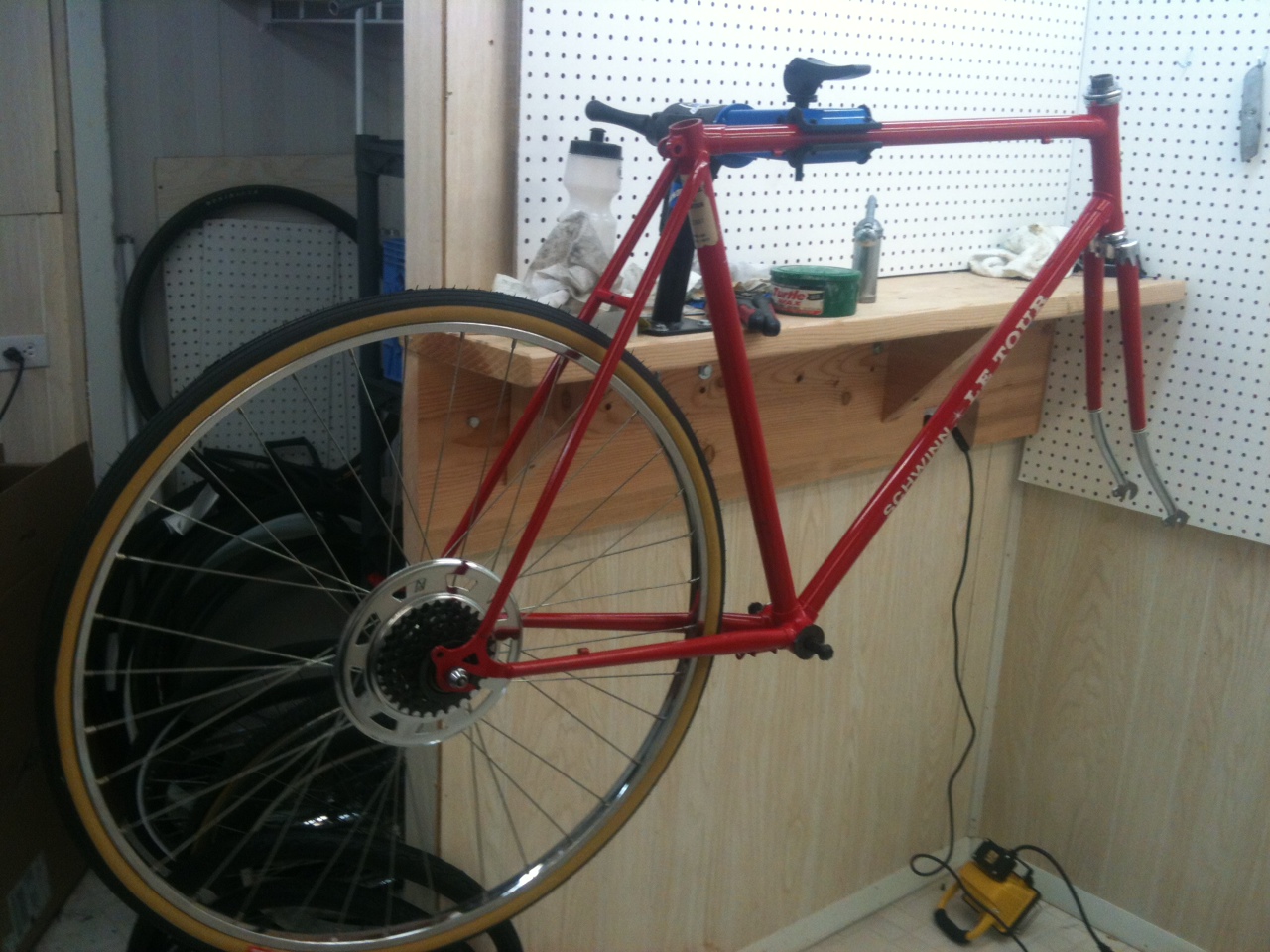

Rear Wheel Installed Free Wheel View

Rear Wheel Rim Polished
Today I started work on polishing the handle bars, stem and the rest of the headset components.  The components are in good shape except for the cable hanger, it had lite rust on it.  For some reason all the cable hangers from the 70's rust easily.  The hanger did polish up nice, just a few pit spots.  Everything else polished out nicely.  I then started work on the shift levers, the levers will take a while, I have restored 100's of shift levers, but I have never seen levers put together like this.  I have to do one lever at a time and label everything.  Restoring one lever at a time leaves one lever assembled as a guide if things do not go back together correctly.  I will post photos of the levers when I am finished with them.

The Stem and bars look great polished, my shop lighting does not do justice to the shine in the photos.  I can't wait to see the new brake levers and new white cork gel tape against the shine and the red.


Handle Bars Before

Handle Bars Broken Down

Headset & Handle Bars Polished & Installed

Stem & Handle Bars Polished & Installled

I finished work on the derailleurs.  They looked in rough shape, but looks are not everything.  A good amount of degreasing and cleaning and then a lot of polish on the buffer and they look great.  I love the look of the LeTour rear derailleur.  I have restored many of them and I think they are one of the best looking derailleurs made.  Something that surprised me about the front derailleur is that the chain cage is brushed chrome.  Usually they have a high sheen, but I kind of like the brushed look.  I hope to get the crank set polished and installed tomorrow.

Front & Rear Derailleur Before

Front Derailleur Before

Rear Derailleur Disassembled

Rear Derailleur Before

Rear Derailleur Polished

Rear Derailleur Installed

Front Derailleur Installed

I started work on the crank set today.  The crank was pretty dirty, dirty enough that I could not tell the finish of the metal.  I disassembled the crank, all 38 pieces and cleaned all the grease off.  The finish is a brushed nickle look, it is a nice look but means that you can only do very lite polishing.  After polishing the crank looks great.  There are a few spots that I wish i could have polished harder, but that would leave a shinny spot against the brushed look.  With the crank looking good I installed it on the bike.  I really like the cleaned polished metal against the red.

  I am still waiting on the new front wheel, the seat and brake levers.  I won't say where I order them from, but they always have very slow processing and shipping times.  The prices are good, but i guess you make up for that in time.  I wish the wheel and levers where here, it would allow me to start running new cable housing and see the fresh new white of the housing against the red.  I think I will start polishing the miscellaneous parts like the seat post components and cable hanger, the bracketts that run the cables down the down tube and BB, and a few bolts here and there.  i will also start the brakes soon.

Crank Before

Crank Before

Crank Disassembled

Crank Cleaned & Polished

Crank Installed
Today I cleaned and polished the many miscellaneous parts on a bike that you don't think of but take a good amount of time to restore and are very noticeable if you do not restore them.  This include the seat post, seat post bolt, seat post cable hanger, bottom bracket cable hanger, down tube cable hanger, left crank arm and front reflector.  Everything cleaned and polished nicely.  Most people prefer the cable hanger be part of the frame, but I have always like the chrome strapping type hangers.  They have character and shine.  Waiting on parts to arrive has really slowed me down, I am getting to the frustration point that I might mention there name on the blog.  Next is to clean and polish the brakes and put on new brake pads.  Then it is just waiting on parts.

Misc. Parts Before

Seat Post Hanger Bolt & Tube Polished

Bottom Bracket Cable Hanger Polished

Down Tube Cable Hanger Polished

Front Reflector Polished

Crank Arm Polished
Work on the front brake went very well.  A polished brake caliper makes all the difference in the world, it really starts to bring the restoration together.  It takes some patience to overhaul these old center pull brakes,  there are 36 pieces per brake.  These brakes where just slightly different than many of the brakes this type I have restored.  I will be starting the Rear brake in a little while, I always need a brake after each caliper.  It is 1:30 and still no UPS with parts.

Brake Calipers Before

Front Brake Caliper Before

Front Brake Caliper Exploded View

Front Brake Polished Rear Brake Before

Front Brake Caliper Installed

Front Brake Caliper Installed
I started work on the rear brake, but then got a knock at the door, it was UPS with half the parts, seat and brake levers.  I couldn't wait to see the seat and levers on the bike so I put the rear brake on hold.  I first had to polish the seat coupler, i have seen this area ignored before on restored bikes because it is mostly hidden by the seat, but I notice it right away, and it would not be a complete restoration if it wasn't overhauled.  I am not even sure if it is called a coupler, but that is what i call it.  With the coupler polished I installed the seat.  It looks great, but I will be removing it after photos are taken to keep it clean during the rest of the restoration.  With that complete I installed the modern brake levers.  The bike is really starting to come together, just need that new front wheel to show up.  I will post rear brake photos when it is complete.  I need to rearrange my new shop better so I can get better overall views of the bike.


Rear Brake Exploded view

Seat Coupler Before polishing

Seat Coupler Polished

Seat Installed - Looks Great


Still no front wheel today, the company assured me that it is on its way.  I started polishing the rear brake and noticed that one of the caliper arms had a broken area where the cable yoke attaches.  Just the tiniest little fingers broken off, but enough that the cable does not seat properly.  Maybe this is why the bikes seems to have so little use, it probably didn't stop well with the cable not seated properly.  I tired to find a replacement arm in my collection of replacement parts but did not have one because the original caliper is actually of lesser quality then most.  So my solution is to use a replacement caliper from my collection.  This is a Weinmann 750 center pull brake amde in Switzerland, a very nice brake, better then the original.  After polishing and installing the brake looks great.  There is a photo where you can see the tiniest finger broken off, hard to see, but makes all the difference in the world.  Tomorrow I hope finish off the shift levers and start running housing and cables. I just noticed in the photos that I have to polish and install the rear reflector.

Broken Caliper Arm

Caliper From My Collection

Caliper Exploded View

Caliper Polished & Installed w/ New Brake Pads
You may notice from the photos that the front wheel actually showed up today.  I did not get as far as I would have liked today, life just did not allow it today.  But I still have this evening if things go right.  I Finished off the shift levers.  I am not completely happy happy with the chrome.  It shines fine, but it is thin and has some pits.  I looked through my collection of parts and do not have a replacement one, I have a ton of Sun Tour Shift levers, but not a Schwinn.  I do have pretty high standards.  I ran the cable housing and cables,  I am going to rerun the rear brake cable, I think the housing can be a little shorter.  I always seem to have a first draft when I run housing.

The front wheel showed up, it is actually an alloy rim, I went back and looked and they say steel replacement rim in the description so I gave a call and they said that it is a misprint, It is actually alloy.  I can not believe that the alloy rim and wheel cost so little, I run the same wheel on my Schwinn World Fixed gear, but nutted instead of quick release and it is a great wheel.  I am a little worried about the rear wheel now, it looks great, but it is much heavier then the new front wheel.  I hope to be finished soon, its in the home stretch, but now its all details, details take time but make the bike in the end.


Shift Levers Polished & Installed

Cable, Cable Housing & Front Wheel Installed

Cable & Cable Housing Installed

Rear Derailleur Cable & Housing Installed

I finished the bike today except for the test ride, tuning and a wipe down.  I will post the photos of the final details later, but I wanted to get these up to be seen.

Schwinn Le Tour - Side View

Schwinn Le Tour - Favorite Angle

Schwinn Le Tour Front View

Schwinn Le Tour - Rear View

Schwinn Le Tour - Drive Train

Schwinn Le Tour - Handle Bar View
The bike is finished and David has picked it up.  We had one small problem with a loose headset, the lock ring cam loose.  David and I where discussing there might not be a better looking or better condition 38 year Le Tour out there.  I absolutely love the red and white theme, I am a little jealous of it and am stepping up my search for a red Schwinn Superior for myself and to go with the red and white theme.

Thanks for looking, if you learned anything or found the post enjoying please do you Amazon shopping in the link at the top right corner of the blog.  It helps support the blog and does not raise your Amazon prices.  Thanks, John Z..
