Joel's 1976 Schwinn Tri-Wheeler Restoration - "Mary"

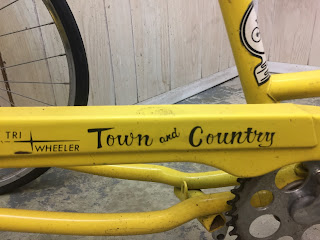

This is Joel's 1976 Schwinn Town & Country Tri-Wheeler.  This Tri- Wheeler has quit a history.  It was owned by a family in Oswego, Illinois.  The Tri-Wheeler basket had every child's photo taken in and many rides.  The Tri-wheeler was also flipped, tipped and rolled and wheelies where done.  The Tri-Wheeler came with a license plate attached to the basket with the name Mary on it, the Tri-wheeler was known as Mary from then on and will be continued to be known as Mary.

Mary is going to receive a restoration with new tire tubes, a NOS shift cable and lever, a new brake cable and a replacement seat post to replace the bent one.  I have restored a couple trike bicycles before but none where Schwinns.  I am excited to restore this Schwinn.

The Tri-Wheeler I think is pretty nice under the years.  There is some grime and dullness that I think will go away.  The Tri-wheeler pulled very hard to the left, I can see a slight crookedness in the frame, I think that can be straightened out.  Overall I think the Tri-Wheeler will turn out very nice.

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Handlebars

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Handlebars

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Solar Panel Reflector

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Stem & Headset

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Head Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Front Brake

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Front Fender

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Front Wheel Hub

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Front Fender Strut

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Front Wheel Rim

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Bent Seat Post

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Seat Collar

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Chain Guard

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Chain Guard

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Chain Guard

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Rear Differential

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Mary Plate

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Three Speed Hub

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Three Speed Hub

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Rear Differential

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Rear Fender

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Rear Fender

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Rear Wheel Hub

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Rear Wheel Rim

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Before
Rear Fender

Breaking down the Tri-Wheeler was interesting, it felt a little like pulling an engine or transmission from a truck.  It took a little thought on how to attack the restoration and what sections to keep together.

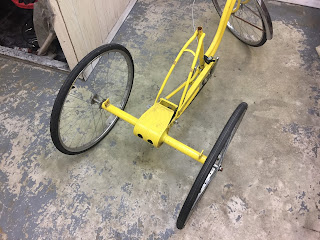

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Break Down

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Break Down

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Break Down

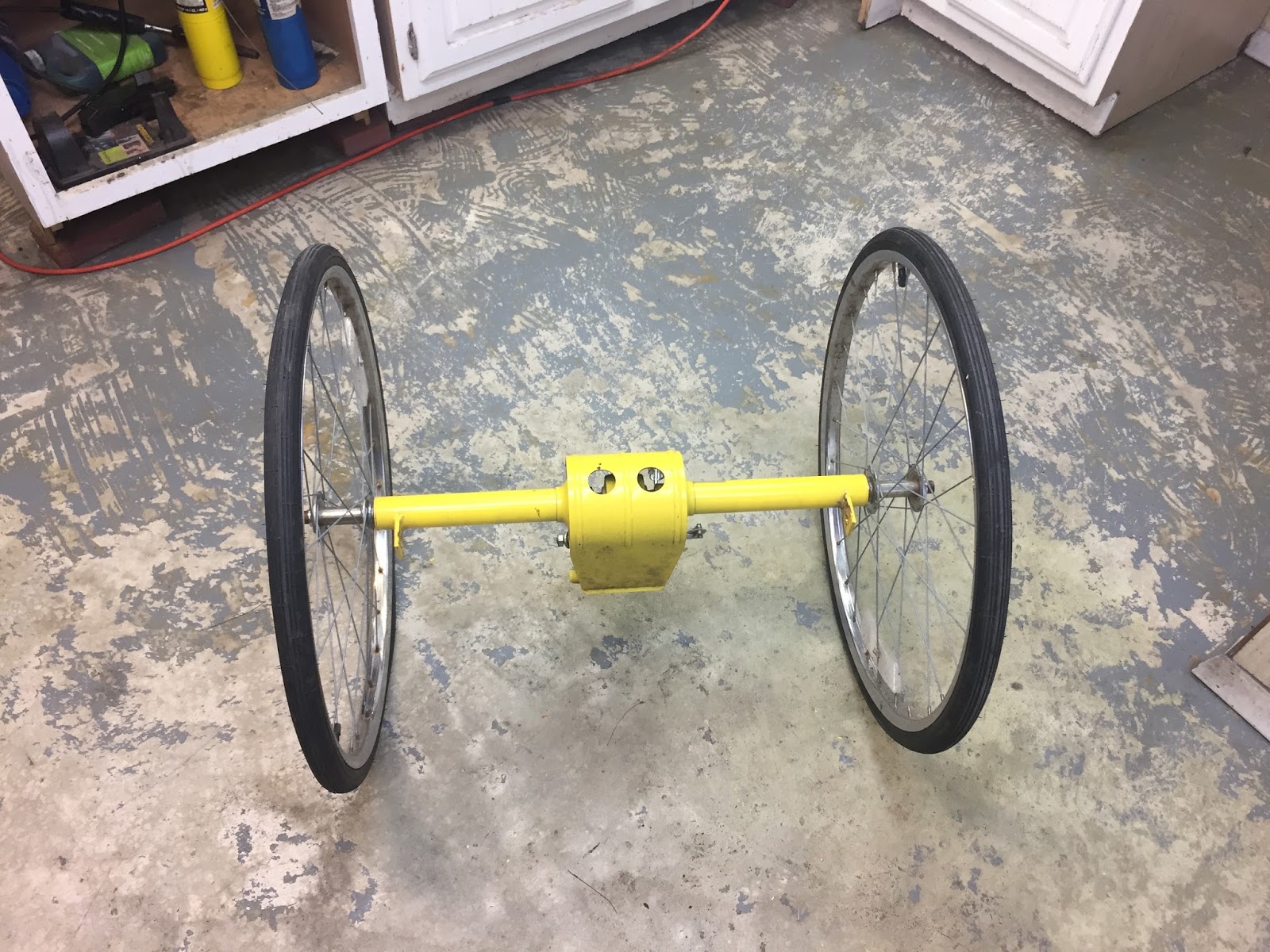

Rear Section

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Break Down
Rear Section

Joel's 1976 Schwinn Tri-Wheeler Restoration - Bicycle Break Down
Front Section
With the main frame stripped down I find the paint to be okay starting shape.  What looks like rust is actually the red primer under the yellow paint.  There also was a little spider nest in the back drop out pinch.  I gave the frame a good cleaning and started the polishing.

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Fork

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Fork Crown

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Fork Blade

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Fork Blade

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Fork Blade

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Fork Drop Outs

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Fork Blades

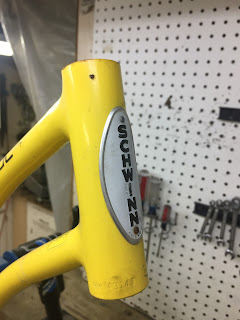

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before

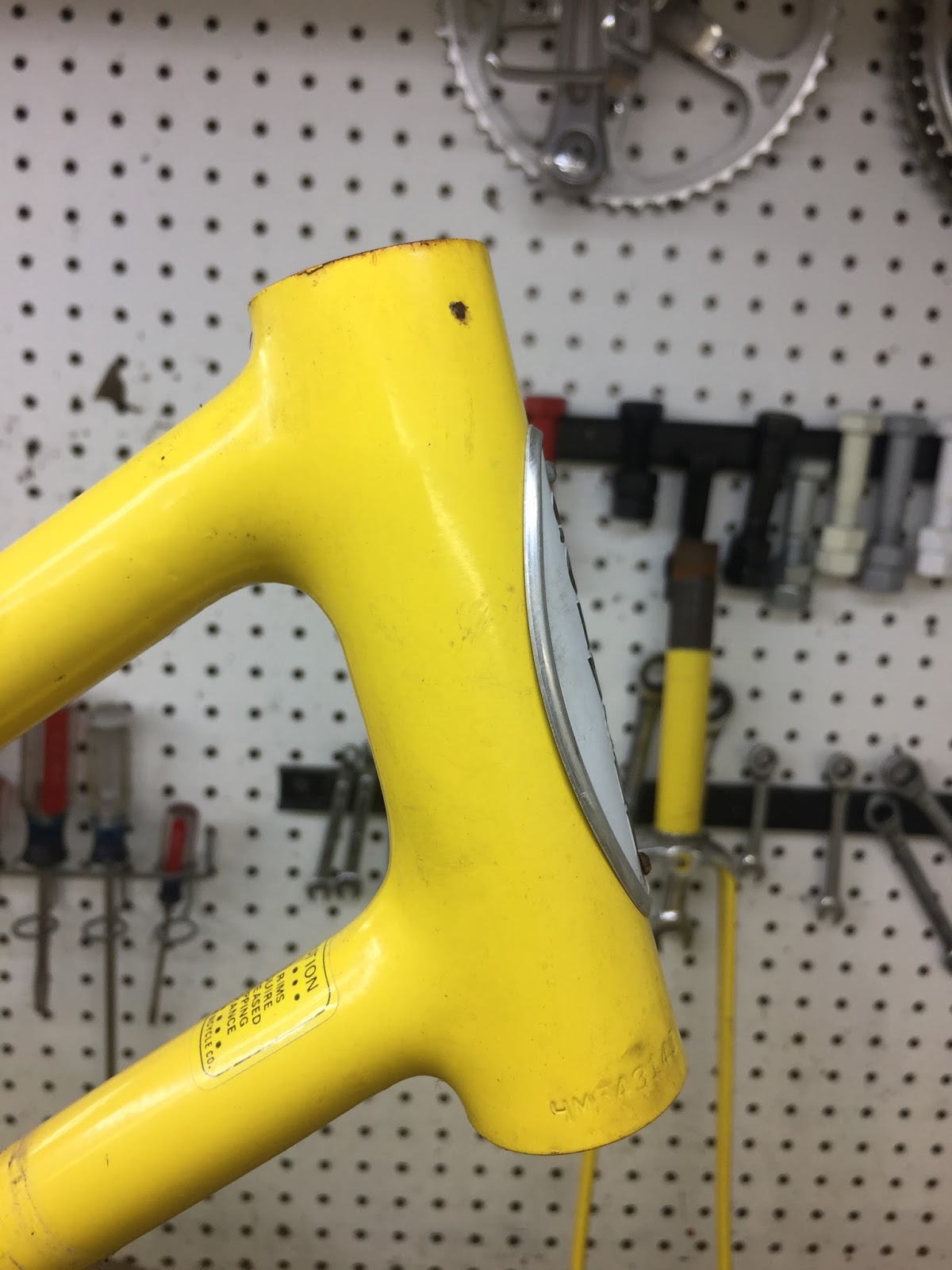

Head Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Head Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Head Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before

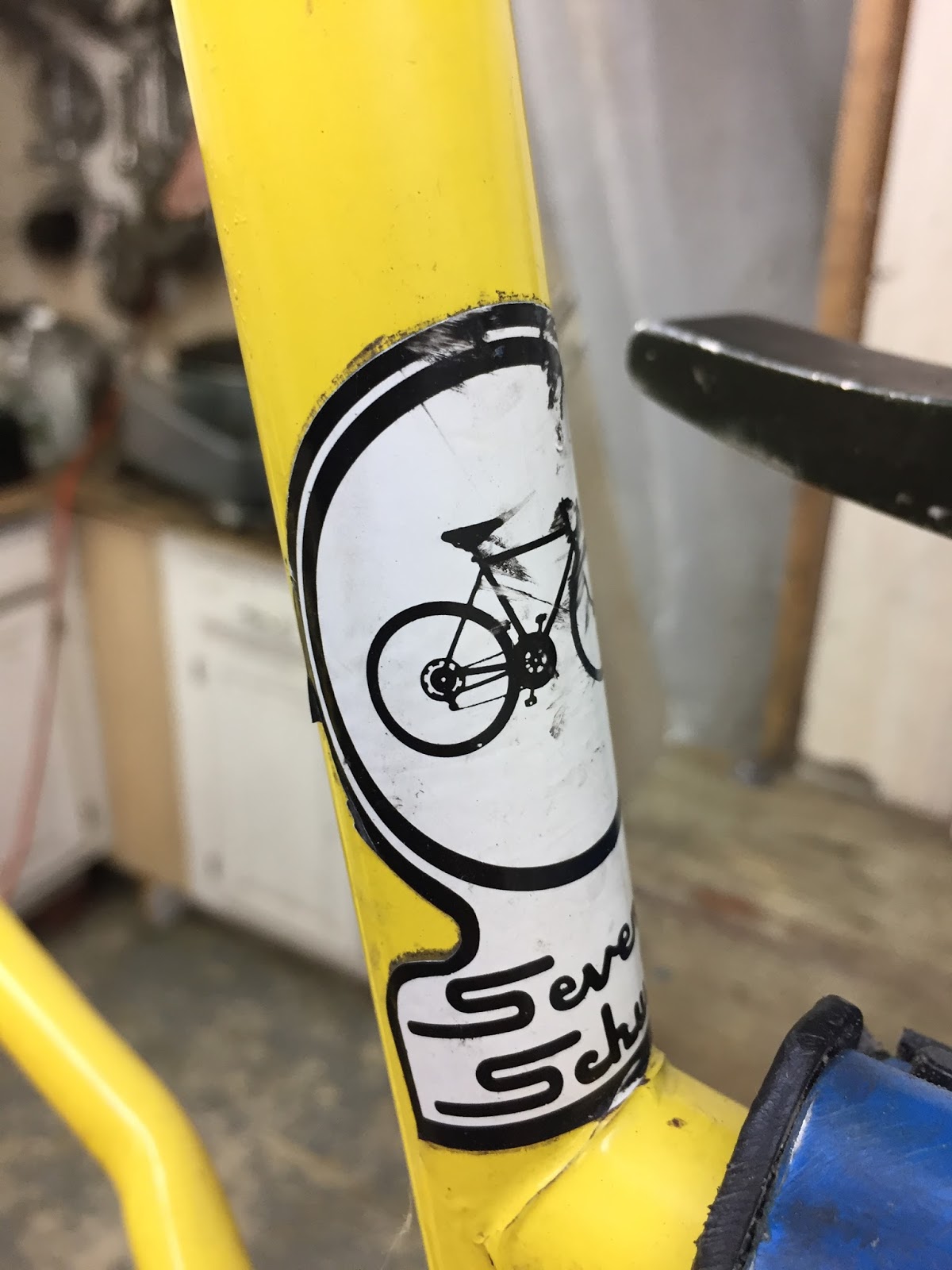

Seat Lug Area

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Bottom Bracket

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Bottom Bracket

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Bottom Bracket

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Seat Stays

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Drop Outs

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Spider Nest

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Before
Drop Outs
I worked through a couple of polishing grits and a good amount of buffing.  The frame polishing turned out great!!  The yellow has a deep luster now and a lot darker, it looks so much better with dullness and paleness polished away.  The decals also turned out great!  I love this stuff!

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Head Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Head Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Down Tubes

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Seat Stays

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Bottom Bracket

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Bottom Bracket

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Bottom Bracket

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Drop Outs

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Fork

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Fork Crown

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Fork Crown

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Fork Blades

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Fork Blades

Joel's 1976 Schwinn Tri-Wheeler Restoration - Frame Polished
Fork Blades

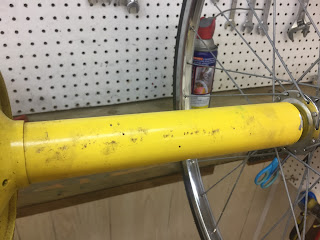

The rear drive train section was very interesting to work on.  The rear wheels where solid to the axles and the cotter pins where frozen in place.  I could have removed the cotter pins but I wasn't sure if we would find replacements the same.  There are no bearings in the rear wheel hubs, they are fixed to the axles, so it was best to leave the wheels in place.   The Shimano 3 speed hub was in working condition and if a three speed Shimano hub is working it is best to leave it be, I just flushed it and made sure it was oiled.  I cleaned all the pieces and worked through the polishing grits.  In the end the drive train section turned out fantastic and works very well.

Joel's 1976 Schwinn Tri-Wheeler Restoration - Rear Section Before

Joel's 1976 Schwinn Tri-Wheeler Restoration - Rear Section Before
Three Speed Hub

Joel's 1976 Schwinn Tri-Wheeler Restoration - Rear Section Before
Differential

Joel's 1976 Schwinn Tri-Wheeler Restoration - Rear Section Before

Joel's 1976 Schwinn Tri-Wheeler Restoration - Rear Section Before
Bicycle License Tag

Joel's 1976 Schwinn Tri-Wheeler Restoration - Rear Section Before

Joel's 1976 Schwinn Tri-Wheeler Restoration - Rear Section Before

Joel's 1976 Schwinn Tri-Wheeler Restoration - Rear Section Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished - Rear Wheel Hub Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished - Polishing

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished - Rear Hub Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished - Rear Rim Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished - Rear Hub Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished - Rear Hub Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Rear Section Restored & Polished - Rear Wheel Rim Complete

The front wheel was in descent shape.  I broke the wheel down and worked through the polishing.  I trued the wheel and packed new bearings and grease.  Overall the front wheel turned out great!

Joel's 1976 Schwinn Tri-Wheeler Restoration
Front Wheel Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Front Wheel Before - Hub

Joel's 1976 Schwinn Tri-Wheeler Restoration
Front Wheel Before - Wheel Rim

Joel's 1976 Schwinn Tri-Wheeler Restoration
Front Wheel Before - Wheel Hub Old Grease

Joel's 1976 Schwinn Tri-Wheeler Restoration
Front Wheel Before - Wheel Hub Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration

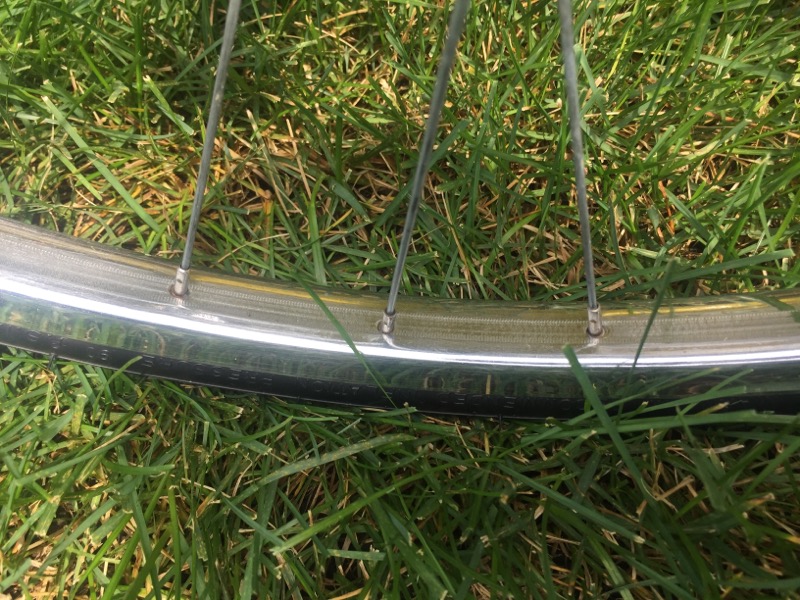

Front Wheel Before - Front Wheel Rim Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Front Wheel Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Front Wheel Bearings Packed

Joel's 1976 Schwinn Tri-Wheeler Restoration
Front Wheel Before - Front Wheel Complete
The headset had the typical Schwinn Headset rust and dried bearings.  After some time in the crock pot I worked through he polishing wheels.  The headset looks great installed and with bearings freshly packed it spins great.

Joel's 1976 Schwinn Tri-Wheeler Restoration
Headset Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Headset Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Pressing Bearings Cups

Joel's 1976 Schwinn Tri-Wheeler Restoration
Headset Cups Pressed

Joel's 1976 Schwinn Tri-Wheeler Restoration
Headset Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Headset Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Headset Complete
The bottom bracket and crank had the typical Schwinn rust and grime.  I cleaned all the pieces and worked through the polishing wheels.  I love how the crank looks installed!

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bottom Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bottom Bracket & Crank Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Crank Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bottom Bracket & Crank Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bearings Packed

Joel's 1976 Schwinn Tri-Wheeler Restoration
Crank Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Crank Complete
The stem and handlebars had the typical Schwinn rust.  I cleaned all the pieces and then worked the polishing wheels.  The stem turned out fantastic!!  The handlebars also turned out great!  I am stunned with the photos of the headset, stem and handlebars installed next to that polished yellow paint!!

Joel's 1976 Schwinn Tri-Wheeler Restoration
Stem Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Stem Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Stem Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Stem Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Handlebars Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Handlebars Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Stem Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Stem Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Stem & Handlebars Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Handlebars Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Handlebars Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration

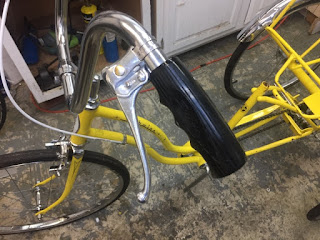

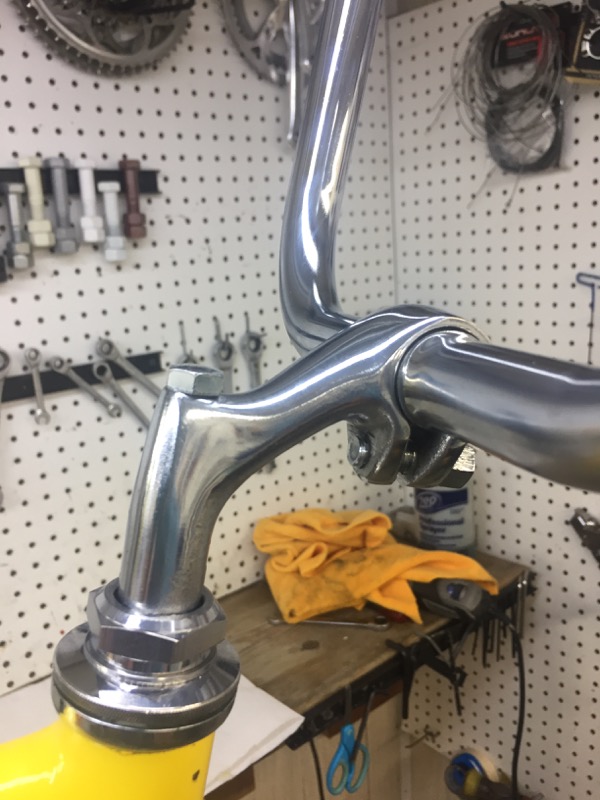

Stem & Handlebars Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Stem & Handlebars Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Stem & Handlebars Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Stem & Handlebars Complete
At this point I combined the main frame the drive train section.

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle To This Point

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle To This Point

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle To This Point

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle To This Point

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle To This Point

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle To This Point

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle To This Point

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle To This Point

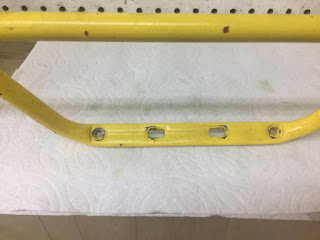

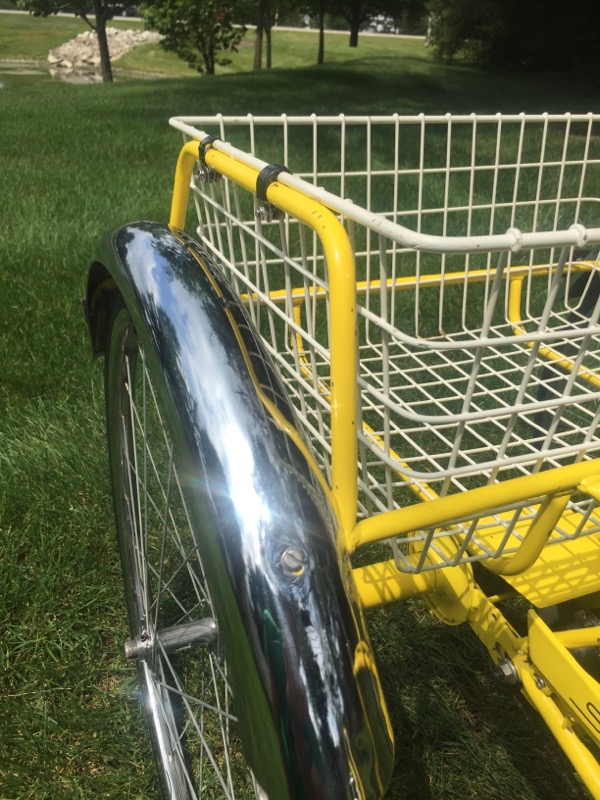

The rear basket bracket had some rough spots to work through and the fenders are also connected to the bracket.  I cleaned everything and worked through polishing.  The hardware I placed in a solution I made to kind of return the original factory finish.  In the end I couldn't be happier with the results of the basket bracket.

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Fenders Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Fenders Before
Joel's 1976 Schwinn Tri-Wheeler Restoration
Fenders Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Fenders Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Bracket Complete
Next was the chain guard and chain.  I very very carefully cleaned and polished the chain guard, it probably is the best Tri-Wheeler chain guard around.

Joel's 1976 Schwinn Tri-Wheeler Restoration
Chain Installed

Joel's 1976 Schwinn Tri-Wheeler Restoration
Chain Guard Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Chain Guard Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Chain Guard Complete
I polished the brake lever.  It looks fantastic!  The brake lever has a built in parking brake.  I could not get it to work no matter what I did, I planned a leather strap to act like a parking brake.  When I delivered the Tri-Wheeler to Joel I forgot the leather strap so I tried the parking brake one more time and it worked perfectly and I think it has worked perfectly ever since.  Sometimes the soul of a bicycle has its own mind.
Joel's 1976 Schwinn Tri-Wheeler Restoration
Brake Lever Polished

The new old stock brake cable and brake lever are perfect.  It looks amazing installed.  The photoed one has a red marker, I later changed it to a black marker.

Joel's 1976 Schwinn Tri-Wheeler Restoration
NOS Shift Lever
The Schwinn handlebar grips look amazing after cleaning and treating.  It is amazing how well they held up.

Joel's 1976 Schwinn Tri-Wheeler Restoration
Handlebar Grips Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Shift Lever Installed

Joel's 1976 Schwinn Tri-Wheeler Restoration
Brake Lever Complete
The Schwinn side pull brake calipers are not the best calipers ever made but man I love how they look installed.  This caliper just pops of the polished yellow paint.

Joel's 1976 Schwinn Tri-Wheeler Restoration
Brake Caliper Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Brake Caliper Exploded

Joel's 1976 Schwinn Tri-Wheeler Restoration
Brake Caliper Polished

Joel's 1976 Schwinn Tri-Wheeler Restoration
Brake Caliper Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Brake Caliper Installed
The Mary plate and basket.  The basket took a good amount of time to cleaning but it turned out great!  I would tell you my secret but I spent a lot of time figuring it out, maybe someday I will let it out.  I attached the Mary plate a little nicer then the wire and it looks great also!!

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Before - Mary Plate

Joel's 1976 Schwinn Tri-Wheeler Restoration
Basket Complete
The rear wheels need truing and if I removed them they still would't go on the wheel stand, I had to come up with a way to mark true, a screw driver and zip ties did the trick.

Joel's 1976 Schwinn Tri-Wheeler Restoration
Truing Wheels

The pedals look brand new after cleaning, polishing and treating!!

Joel's 1976 Schwinn Tri-Wheeler Restoration
Pedals Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Pedals After
The seat binder was a little rusty, some soaking and polishing and it turned out pretty nice.

Joel's 1976 Schwinn Tri-Wheeler Restoration
Coupler Before

Joel's 1976 Schwinn Tri-Wheeler Restoration
Coupler After
The extremely long seat post really wasn't need and was bent.  A shorter seat post will work much better.


Joel's 1976 Schwinn Tri-Wheeler Restoration
Replacement Stem
These photos are some of the most beautifully I have taken.  The polished yellow and chrome looks so good in the dark green grass.  The white basket looks bright white now!  I really love how the Tri-Wheeler turned out!

The Tri-Wheeler was so much fun to ride, it is so different from a two wheel bicycle.  Turning corners to fast is a very thrilling experience!  This was so much fun restoring the Tri-Wheeler.

When I delivered the Tri-Wheeler to Joel in Oswego I was fortunate enough to meat the family that use to own the Tri-Wheeler.  Meeting the family and seeing their reaction to the Tri-Wheeler made me feel very good at the work I had done.

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Handlebars

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Head Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Brake Caliper

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Front Fender

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Front Wheel Hub

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Front Wheel Rim

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Handlebars

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Stem

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Head Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Saddle

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Down Tube

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Drive Train

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Fenders

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Rear Wheel Hub

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Rear Wheel Hub

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Rear Wheel Rim

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Mary Plate

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Drive Train

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Drive Train

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Fender

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete - Rear

Joel's 1976 Schwinn Tri-Wheeler Restoration
Bicycle Complete

1 comment:

  1. Thanks for doing a great job on Mary, John. Not too many yellow Town & Country's still around. Now, it will be for years.

    ReplyDelete
