Jose's 1980's Trek Road Bike Restoration

Jose's 1983 Trek 410 - Bicycle After
Jose's 1983 Trek 410 - Bicycle Before


This is the second bike in the three at once restoration.  This is Jose's early 1980's Trek Road Bike.  The large down tube decal is mostly missing so I will have to do some research to find the exact model, but I am guessing it is a 410?  The plan for the Trek road bike is a restoration with not much in upgrades.  The accent color to the blue frame will be mostly white.

The frame is in pretty good condition minus the decals.  The components have some pretty nasty thick grease and grime, but not as bad as the grease was on the Miyata Gran Touring 210, but close!  The frame is my favorite, Steel  Lugged and its famous Reynolds 531 tubing so it pretty decently light.

Parts are starting to trickle in.  The frame has been stripped of components and will be cleaned and polished with the other two restorations.

Jose's 1983 Trek 410 - Bicycle Before - Side View

Jose's 1983 Trek 410 - Bicycle Before - Crank &
Front Derailleur View
Jose's 1983 Trek 410 - Bicycle Before - Bottom Bracket
Jose's 1983 Trek 410 - Bicycle View - Front Wheel Hub
Jose's 1983 Trek 410 - Bicycle Before
Front Brake View

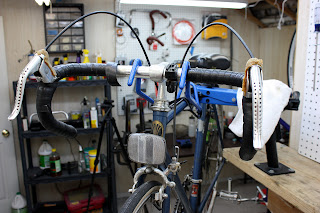

Jose's 1983 Trek 410 - Bicycle Before - Handlebar
View
Jose's 1983 Trek 410 - Bicycle Before
Shift Levers - Love the Detail of The Matching
Blue on the Levers.
Jose's 1983 Trek 410 - Bicycle Before
Rear Derailleur - Same Blue Detail

Frame Stripped of components below and the famous Reynolds 531 decal.

Jose's 1983 Trek 410 - Frame Dirty - Side View
Jose's 1983 Trek 410 - Frame Dirty - Bottom Bracket
Jose's 1983 Trek 410 - Frame Dirty - Top Tube

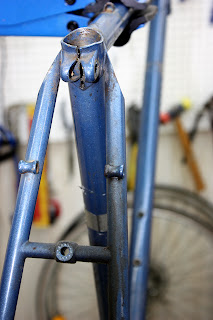

Jose's 1983 Trek 410 - Frame Dirty - Seat Stays

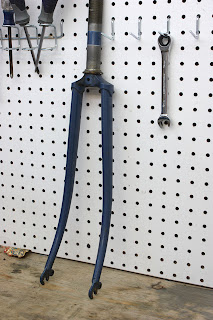

Jose's 1983 Trek 410 - Frame Dirty - Fork Before

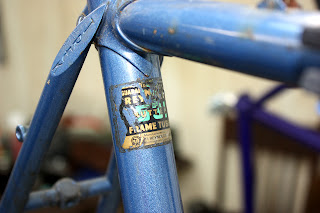

Jose's 1983 Trek 410 - Reynolds 531 Decal
That is where the bicycle is now, will start to go pretty fast along with the other two restorations.

The Trek Reynolds 531 frame took sometime to clean and polish.  The dirty was extremely hard to break free.  Once clean the frame polished up well.  There is some rust on the top tube cable brackets that bled onto the top tube, the rust staining cleaned up okay.  Overall the frame looks good.

Jose's 1983 Trek 410 - Frame Polished
Jose's 1983 Trek 410 - Frame Polished - Bottom Bracket
Jose's 1983 Trek 410 -  Frame Polished
Seat Stays
Jose's 1983 Trek 410 - Frame Polished
Fork
With the frame polished I put the bottom bracket and headset components into the crock pot on low to clean the grease.  There is a little rust that should clean up when polished and the grease is not to bad.

Jose's 1983 Trek 410 - Bottom Bracket & Headset
Before Cleaning

Same for the other two bicycles in the three restorations the headset and bottom brackets turn smoothly.  The headset had some rust spots and cracked chrome around those rust spots.  The rust mostly polished off and the chrome polished nicely but there is some pretty deep pitting where the rust was.  Installed the headset looks great.

The bottom bracket took a while to get the hard grease removed but polished very nicely.  The bottom bracket looks great installed and turns smooth.

Jose's 1983 Trek 410 - Bottom Bracket & Headset - Polished
Jose's 1983 Trek 410 - Headset Cups
Pressed

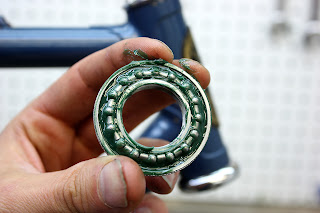

Jose's 1983 Trek 410 - Headset Bearings Packed
Jose's 1983 Trek 410 - Headset Complete
Looks Great
Jose's 1983 Trek 410 - Bottom Bracket - Bearings Packed
Jose's 1983 Trek 410 -  Bottom Bracket

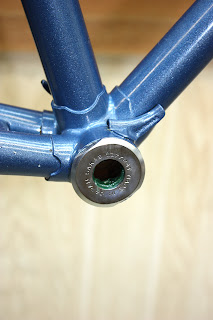

Fixed Cup Installed
Jose's 1983 Trek 410 - Bottom Bracket
Complete
Jose's 1983 Trek 410 - Bottom Bracket & Headset Complete
The cranks are next on the list.  The Trek road bike crank is very greasy and grimy but after cleaning it looks great, next will be the polishing of the crank arms and chain rings.

Jose's 1983 Trek 410 - Crank Before

Jose's 1983 Trek 410 - Crank Disassembled
The crank polished up pretty nice.  Reassemble went easy and the shine really looks good against the blue of the frame.

Jose's 1983 Trek 410 - Crank Polished

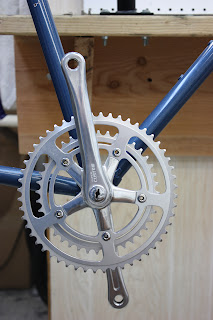

Jose's 1983 Trek 410 - Crank Installed
Jose's 1983 Trek 410 - Crank Installed
Next is the stem or quill and handlebars.  The stem polished pretty good, there are some deep scratches that are not perfect but good.  The handlebars also are not perfect but look very good.

Jose's 1983 Trek 410 - Stem Before

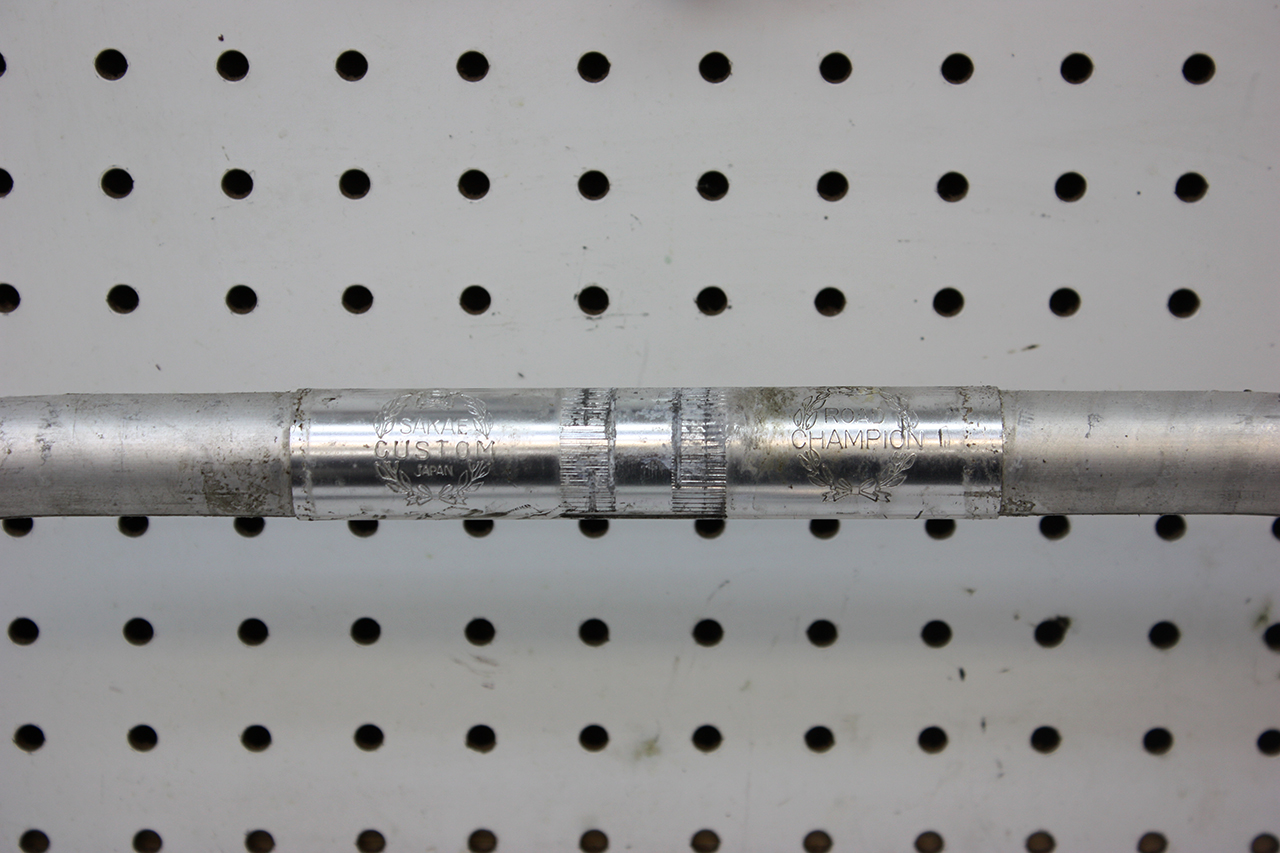

Jose's 1983 Trek 410 - Handlebars before
Jose's 1983 Trek 410 -
Stem & Handlebars - Polished

Things are moving along now.  Next will be the wheels.

I am not going to do three restorations at once now, I am just going to finish one bike through at a time.  Three at once is not faster, I would say its almost slower.

The wheels are complete, I badly underestimated the time and condition of the Trek's wheels.  There was actually a lot of corrosion and staining to the alloy wheels and the spoke are cosmetically in bad shape.  It took a lot of time to polish out the corrosion and staining, but the wheels rims look fantastic, I am very proud of my work.  I also sanded the spokes to clean them up and look somewhat better.  If Jose really likes the bike after riding it for a while I would actually recommend relacing the rims and hubs with new spokes, but that is a costly thing to do, but the rims and hubs are really nice so worth it if he likes the bike.

Jose's 1983 Trek 410 - Rear Wheel
Before
Jose's 1983 Trek 410 - Rear Wheel Hub - Before
Jose's 1983 Trek 410 - Rear Wheel Rim
Before
Jose's 1983 Trek 410 - Rear Wheel
Old Bearing Grease
The old tires where so rotted to the rims that I had to cut them off, I did not like doing this because I thought I was cutting into tubes that still held air, but when I got the tires off the tubes where badly rotted to the inside of the tires.

Jose's 1983 Trek 410
Old Tires Cut off
Jose's 1983 Trek 410 - Rear Wheel Hub - Polished
Jose's 1983 Trek 410 - Rear Wheel Rim
Polished - I am Thrilled with the Rim!
The front wheel was in the same shape with the rim in a little worse shape then the rear.  It also polished very nice, I am very pleased with it.

Jose's 1983 Trek 410 - Front Wheel Hub - Before
Jose's 1983 Trek 410 - Front Wheel
Rim -  Before
Jose's 1983 Trek 410 - Front Wheel

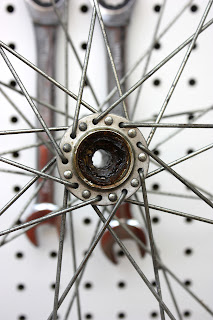

Old Grease
Jose's 1983 Trek 410 - Front Wheel
Hub - Polished
Jose's 1983 Trek 410 - Front Wheel Rim - Polished
A Bad Spot with Some Corrosion
Jose's 1983 Trek 410 - Rear Tire
Installed
Jose's 1983 Trek 410 - Wheels & Tires Installed
Below is a link to the very nice 27 x 1 1/8 inch Continental Sport tires.  I have used these tires in the past and like them very much for older narrow 27 inch rims.



With the Trek 700 complete I am working hard on the Trek 410 road bike.  Today UPS dropped of a new sonic cleaner, I have never used one before but thought I would give it a try in search of efficiency.  It took sometime to figure out but WOW, awesome results.

I am starting on the brake levers, brake calipers and derailleurs today.  I started with the brake levers, one at a time so I can use the old condition of one against the restored lever for before and after photos.  I had to scrape off the old rubber brake hood first, which was badly rotted.  I then put the lever in the sonic cleaner and ran it for 3 cycles.  I am amazed at the results from the sonic cleaner.  Of course the parts still need polishing, but the time saving with the sonic cleaner are amazing.  The most time consuming part of a restoration is cleaning all the parts before they can be polished.  I am looking forward to seeing what the sonic cleaner can do.

Jose's 1983 Trek 410 - Group Set - Before
Jose's 1983 Trek 410 - Brake Levers - Before
Jose's 1983 Trek 410 - Brake Lever - After Sonic Cleaning
& Polishing
I found new brake lever hoods that are so much nicer then the old brake lever hoods ever where.  They are from Crane Creek and are black and fit perfectly.

Jose's 1983 Trek 410 - New Brake Hoods
Jose's 1983 Trek 410 - Brake Levers - Before & After
Jose's 1983 Trek 410
Brake Lever Installed
Jose's 1983 Trek 410
Brake Levers - Before & After

Below are a few photos of the second brake caliper with the new hood installed and a photo of both brake levers installed.

Jose's 1983 Trek 410
Second Brake Lever Polished
Jose's 1983 Trek 410 - Both Brake Levers - Installed

Next I put the front derailleur in the sonic cleaner.  I gave the front derailleur only a very quick brushing with a soft wire brush to knock some of the larger bits off and then put it in.

Jose's 1983 Trek 410 - Front Derailleur Before
Jose's 1983 Trek 410 - Front Derailleur After
Sonic Cleaning Only
Jose's 1983 Trek 410
Front Derailleur - Polished & Installed

I also at this time disassembled a brake caliper and put it in the sonic cleaner.  The brake caliper that I put in the sonic cleaner is the less dirty one in the photo below.

Jose's 1983 Trek 410 - Brake Calipers - Before
Jose's 1983 Trek 410
Brake Caliper Before

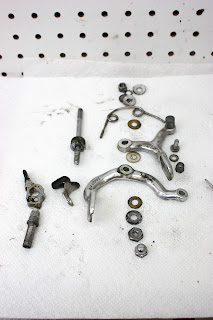

Disassembled
Jose's 1983 Trek 410 - Brake Caliper After Sonic Cleaning

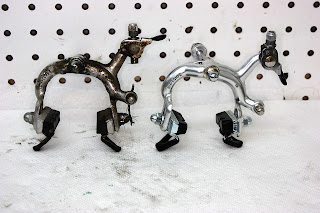

Jose's 1983 Trek 410 - Brake Caliper - Before & After
Jose's 1983 Trek 410 - Front Brake Caliper Installed
The rear brake caliper was in a little rougher shape, but it still cleaned up beautifully, just a few dings.

Jose's 1983 Trek 410 - Rear Brake Caliper - Restored

Next was the rear derailleur, I think this derailleur is one of the most beautiful derailleurs I have seen.  I love the blue stripe down the middle.  I am not sure, but I think there might not be enough tension in the derailleur, but we will find out when the chain is installed, otherwise the derailleur functions wonderfully after the pivot points where flushed and lubricated.

Jose's 1983 Trek 410
Rear Derailleur - Before
Jose's 1983 Trek 410 - Rear Derailleur - Polished
Jose's 1983 Trek 410 - Rear Derailleur - Installed
At This point I have the shift levers half done and tomorrow I will be finishing up the chain and running new cable housings and cables, polishing the seat post and installing the saddle and installing the reflectors.  Everything going right hopefully it will be done tomorrow.

Did not get the Trek finished, but i do want to post a few photos I have left on this flash memory card before I go to a new one.  I really like the blue detail in the shift levers to match the rear derailleur.  I completely broke down the levers, cleaned and greased all the small components.  The levers polished up nicely and look great installed.

Jose's 1983 Trek 410 - Shift Levers
Before
Jose's 1983 Trek 410
Shift Levers Installed
I installed the rear brake, I also had to install the rear reflector at the same time.  I am one of the few but I like the old solar panel reflectors, this one isn't giant like some, but I have always liked them.

Jose's 1983 Trek 410
Rear Brake caliper & Reflector
Installed
I finished up the Trek 410 today.  I ran the cables and housings and installed the seat post, saddle and chain. The bicycle tuned out pretty easy, the Trek shifts very smooth for friction shift and rides very smooth and fast.  The freewheel is a little gritty and loud, so that will probably be on the replace list.

Going to start the last part of the restore with the rear wheel.  The pie plate polished very nice and at the same time I installed the free wheel.  The freewheel was gritty and very stiff, I worked oil into it to clean and get it moving better.  It is rough but better then it was.

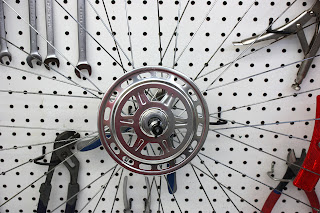

Jose's 1983 Trek 410 - Pie Plate - Polished
Installed

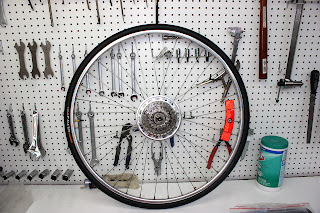

Jose's 1983 Trek 410 - Free Wheel - Installed
Next I ran the cables and housings.  I really like the white cable housings against the blue of the frame.  The rear brake cable housing really looks good in the top tube cable brackets, the cable brackets where a little rough on the inside and its looks a lot better with the cable housing running through them.

Jose's 1983 Trek 410 - New Cables & Housings
Jose's 1983 Trek 410 - Brake Cables - Installed
Jose's 1983 Trek 410
Rear Brake Cable Housing
Installed

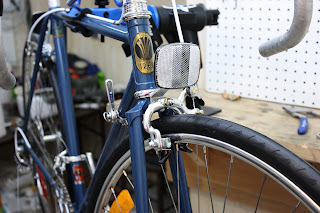

Jose's 1983 Trek 410 - Front Reflector & Brake Cable Installed
Next on the list was the seat post and saddle.  The new saddle is a lightly used Brooks B-17 narrow.  The saddle tie had just a short piece left so I tied in a new blue tie.  I really, really like the look of the Brooks on the Trek.  The seat post also polished nicely.  I also have always liked fluted seat posts.

Jose's 1983 Trek 410 - Old Saddle & New Brooks B-17
Jose's 1983 Trek 410 - Brooks B-17 Installed
Seat Post Polished
Last is the new white gel cork handle bar tape.  I do this last and clean and wipe down the shop first so I would not get the handle bar tape dirty, especially white.  I really like the white cork tape.  It looks great against the blue frame and the new brake lever hoods.  The cork tape went on very tight and fits really nice around the new brake lever hoods.

Jose's 1983 Trek 410
New Gel Cork Handle Bar Tape
Jose's 1983 Trek 410 - Handle Bar Tape
Half Done
Jose's 1983 Trek 410 - Handle Bar Tape - Complete
Final photos below. Again, the Trek rides great, smooth and fast.  Shifts great and is very lite with the Reynolds 531 tubing.  Just got to maybe change out the free wheel at some point to quiet it down.  Wish it was larger, it might ride even better for me, my 6'-4" does not fit on it at all.

Jose's 1983 Trek 410 - Bicycle Complete - Side View
Jose's 1983 Trek 410 - Bicycle Finished - Angle View
Jose's 1983 Trek 410
Bicycle Finished
Front View
Jose's 1983 Trek 410 - Finished Bicycle - Handle Bars
Jose's 1983 Trek 410 - Bicycle Complete - Drive Train View
Jose's 1983 Trek 410
Bicycle Finished
Headset View
Jose's 1983 Trek 410
Bicycle Finished
Saddle View
Jose's 1983 Trek 410 - Bicycle Finished
Rear View
Jose's 1983 Trek 410 - Bicycle Finished
Experiment Cropped Photo
