Craig's Raleigh Grand Prix Restoration

Hello everyone.

     Today I am starting a restoration of a Raleigh Grand Prix for Craig of Illinois.  This was his fathers bike and he would like to get it up on the road again.  To keep things less confusing I am going to start this post today and then continually update this single post with each days new work.  That way there won't be 10 posts connected to this one bike.
     I am going to look up the serial #s a little later to date it, but at first look it appears to be a 1977 or 1978.  The chrome and metal has a lot of surface rust but should clean up very nicely.  The frame is dirty but has very few scratches and chips so that should polish out very well.  All cables and housing will be replaced, also the tires & tubes, brake pads and bar tape will be replaced.  I will also replace the brake levers to new ergonomic levers.  The center pull brake calipers from the 70s work very well with new brake pads and an overhaul.  They also look great when polished.  The wheels will be polished, bearings overhauled and wheels trued.  Bottom Bracket will be overhauled and the crank will be polished.  I am probably forgetting stuff, but that will be updated as things progress.  When done, this will be a really sharp looking nice riding bike.

Raleigh Grand prix before Restoration
Before Handle Bar View
Before Rear Derailleur
Before Crank & Front Derailleur
Before Headset & Shift levers
Before Front Wheel

     The cable housings and handle bar tape will be replaced with a bright white color.  This white will stand out nicely against the darker blue and also highlight the white lettering on the frame.
        I started the tear down of the bike.  Everything went well except for the handlebar stem.  It did not want to budge.  It took a lot of PB blaster and muscle.  After quite awhile it came loose.  I do not know why it was stuck, because there is little corrosion at all.  After bike tear down, I labeled and sorted the parts.
     With all the components off the frame, I could see that there was a lot more dirt then I thought.  There where also areas of the paint that where in rougher shape then I thought, not to bad, but rougher then I thought.  After cleaning and a lot of cleaning, I moved on to polishing.  The photos do not show it well because the dark paint does not photograph well in my light, but the frame polished up pretty nice.  The dark paint also makes it harder to see the rougher areas of the paint.  Over all I am happy with the shine on the frame.  Below are some before and after photos.  Tomorrow morning I will be starting with the headset and handle bars.  Until then, good night.

Frame Stripped of Components & Dirty

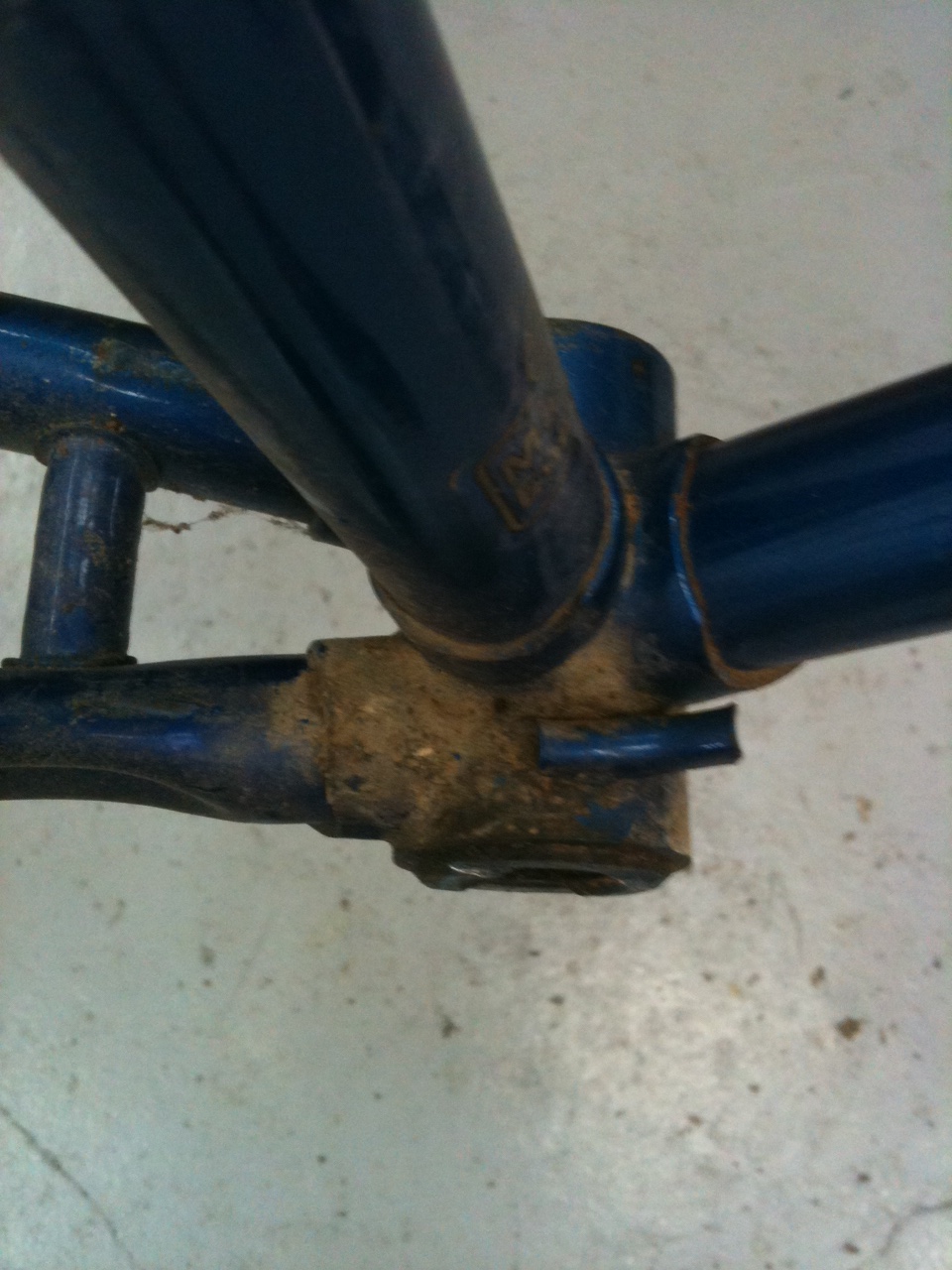

Dirty Bottom Bracket

Components Laid Out

Crank Puller Tool - Removing Crankset

Bottom Bracket - Pretty Nasty

Frame Polished

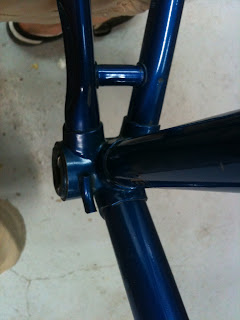

Polished Bottom Bracket- Very Nice Considering Before Photo

Polished Head Badge
     I got started on the Headset this morning.  It is a loose bearing headset.  Most headsets have caged bearings.  A loose bearing headset is a little harder to reassemble for the bearings are loose and easy to get away, but going slow and taking time it goes fairly well.  The advantage of loose bearings is that with out the cage you can fit more bearings in the bearing race.  With more bearings the forces are spread out over a greater area and there for perform better then caged bearings.
    The headset components where very dirty and the grease was dried and sticky.  I cleaned the components with soapy water, I then polished the components on the bench top buffer.  All the parts of the headset polished out nicely except for the brake cable hanger.  That was badly pitted, it did clean up ok.  I am going to look through my parts to see if I have one that fits, otherwise original one is going to be ok.  At the same time I cleaned and polished the fork.  It cleaned up nice and polished nicely.  The fork chrome also polished well for the amount of rust it had.  Just a few spots where pitting can be seen.
     With all the parts polished, I greased the bearings races and then carefully placed the loose bearings in place.  The grease helps hold the bearings in place.  I also applied a layer of grease to the fork tube, this helps prevent corrosion over time.  With everything greased I carefully slid the fork tube through the bearings cups and then installed the bearing cap and lock nuts.  Overall the chrome looks pretty good.  In the photos below you can see the brake cable hanger polished but still a little rough.

Dirty Fork & Headset

Dirty & Rusted Headset

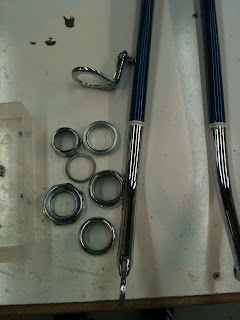

Fork & Headset Polished - Poor Photo

Pressing Bearing Cups with Press

Top Bearings Packed and In Place

Fork Race Bearings Packed
Headset & Forked Installed - Hanger is the duller Chrome Piece Hanging From Top
Polished Fork Chrome
    With the Fork and Headset complete I will move on to the bottom bracket.  With the bottom bracket having loose bearings I want to work on it before the frame starts to get heavy.  Will post as I complete more.  Thank you.

     I completed the bottom bracket this morning.  It is also has loose bearings, which again is better performance over convenience.  I left the drive side or fixed cup in place and cleaned and polished it from the inside.  The drive side cup had little edges to attach the tool to and I did not want to do any damage to it.  The old grease was very sticky and hard. I actually had to use a strong chemical de-greaser and a brass brush on it, which I try to avoid.  When the grease was finally clean I used a Dremil tool and polishing compound to polish the inside of the bearing cups.    I do not have any pictures of the assemble.  It takes all of my hands to assemble a loose bearing bottom bracket and no one was around to take photos.
       I started by putting grease in the drive side cup and then I greased and installed the bearing in the lock side cup. To install loose bearings in the drive side cup I must keep a finger pressed through the drive side cup and carefully drop the bearing into place at the same time pushing them into place with your finger. Next I installed the BB axle with the lock side cup in place and slowly dropped the axle through the drive side cup as I tighten the lock side cup.  You must move very slowly and carefully not to knock the bearing out of place.  I applied a thick coat of grease to the Bottom Bracket axle to help prevent corrosion.  Over all it went very smoothly for a loose bearing bottom bracket.
     Next I will work on cleaning the handlebars & stem and then move on to the wheels.  I like to get the wheels on before I start on the drive train.  That way I can take the bike out of the stand if I need to.  Will post more as i go.

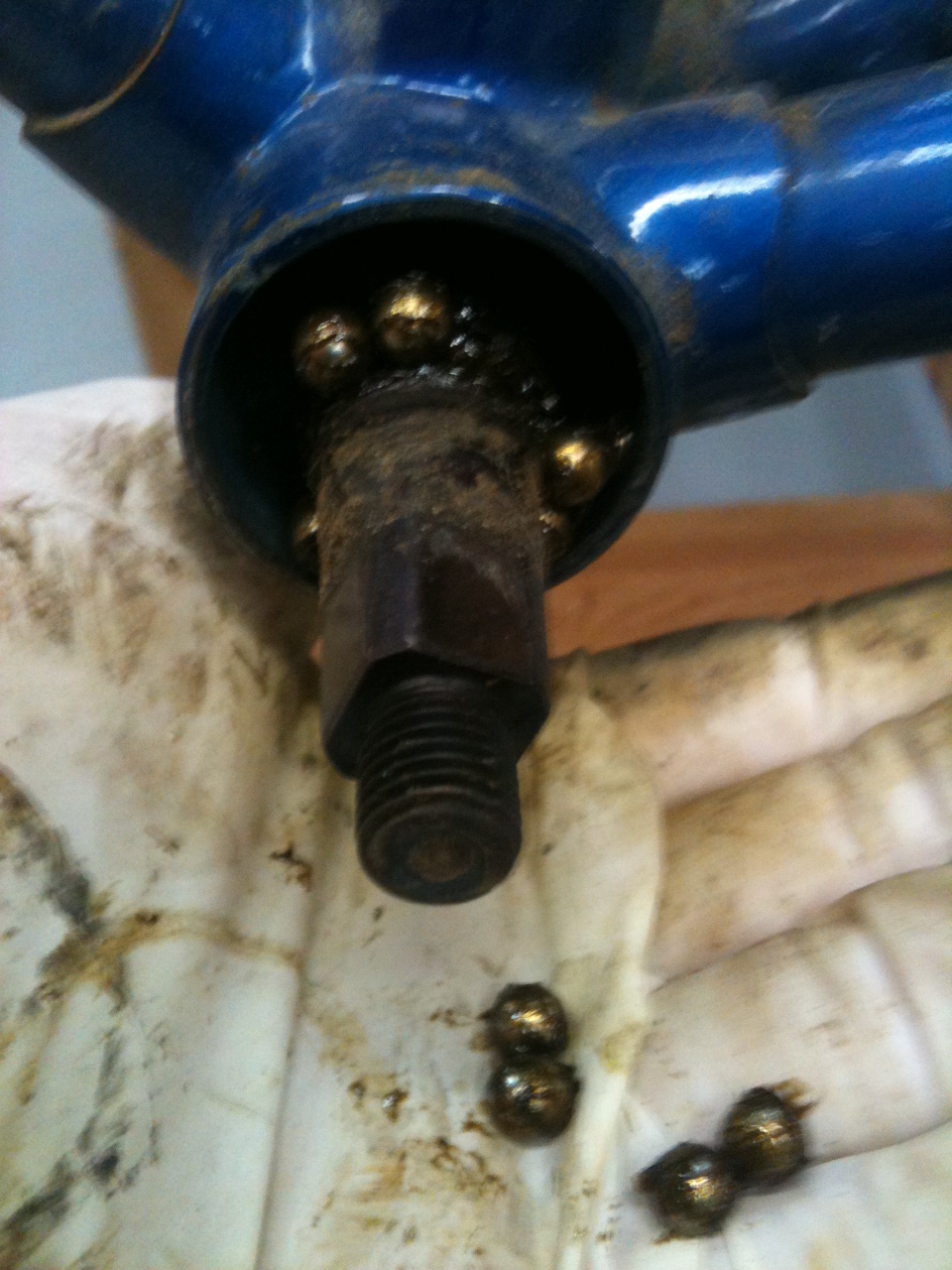

Dirty Bottom Bracket Components & Bearings

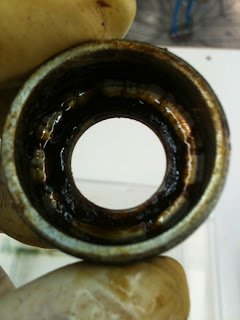

Old Grease in Lock Side Bearing Cup
Rusty out Side of Lock Side Bearing Cup

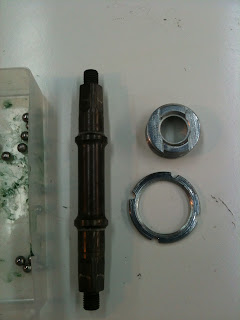

Polished & Cleaned Bottom Bracket Components

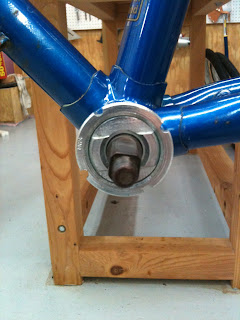

Completed Lock Side of Bottom Bracket - Cleaned up Nice

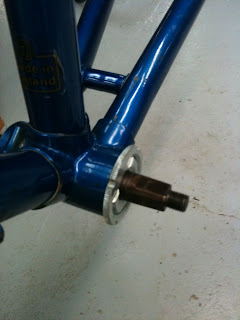

Second View Completed Bottom Bracket
     I started the cleaning and polishing of the Handle bars.  It took a lot of Goo Gone and a brass brush to remove the old glue from the old fabric bar tape.  After that I game the stem and bars a brushing with a Mag Polish and then went to the buffer.  Just after the first buffing the bars and stem look beautiful.  A wonderful glass polish look to them.  I am thrilled.  In the Morning I will give them a final pass on the buffer.  Until then, Thank you.

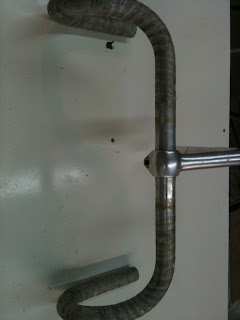

Handle Bars before - Old Tape Glue

Before Handle Bars - View 2

Before Handle Bars - Stem View

Handle Bars - After 1st Buff -  Beautifu

Handle Bars & Stem After 1st Buff
    Good Morning.  I finished the buffing on the Handle Bars and Stem this morning.  I am thrilled with the results.  It shines like glass.  To install the stem I added a coat of grease to the lock nut and to the stem.  This helps prevent corrosion.  There are some stains from the old glue on the aluminum, but that is ok because they will be cover by the bar tape.  The are of the bars that will be seen is perfect.

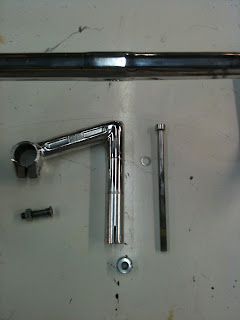

Bars, Stem & Components Polished

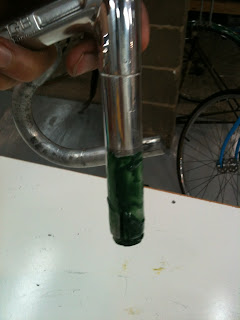

Bars & Stem with Stem Greased

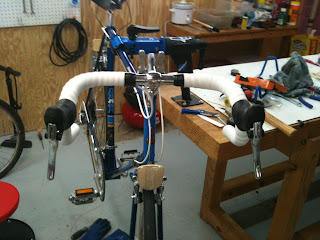

Bars Installed - Sorry Poor Photo

Bars Installed - Very Nice Shine

     I am starting on the rear wheel now.  I have a special tool to remove the free wheel.  It was not an easy tool to find, they do not make it anymore, I found it a couple of years ago on Ebay.  The freewheel tool fits into the freewheel.  I then use a 24in wrench and add pressure in the reverse direction.  It is a large wrench, and I need all the leverage I can get because most freewheel are stuck into place.  Peddling forward actually tightens the freewheel.  That is a lot of force over time tightening the freewheel.  I will add more photos as I go.

Before Freewheel & Cassette

Freewheel Remover Tool

Large Wrench

Freewheel Removed

View of Rust and Dirt on Rear Rim

  Cleaned and polished the rear wheel hub and rim.  There is some pretty bad rust.  Most cleaned up nice but a second coat of polish will be needed.  The grease in the hub was as hard as rock candy.  I had to again break out the heavy duty cleaner.  Considering the condition of the grease there is very little wear to the bearing cones and hubs.  The spokes are the galvanized type everyone used in the 70s.  The spokes will not polish, but they will clean up nice.  The dull dark finish of the spokes will make the rims and hub stand out more.
    I have the axle and bearings soaking, they may need to soak a while with the hard grease.  Will give the hub and rims another coat of polish.  Will post more picks soon.

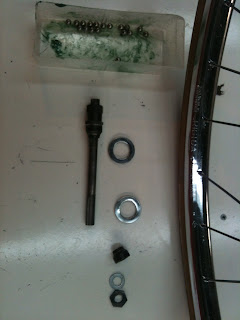

Dirty Axle, Cones & Bearings

Hard Grease in Rear Hub

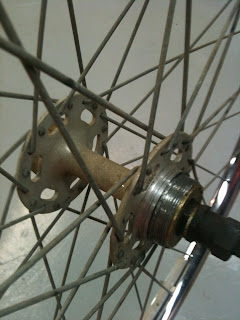

Hub Before

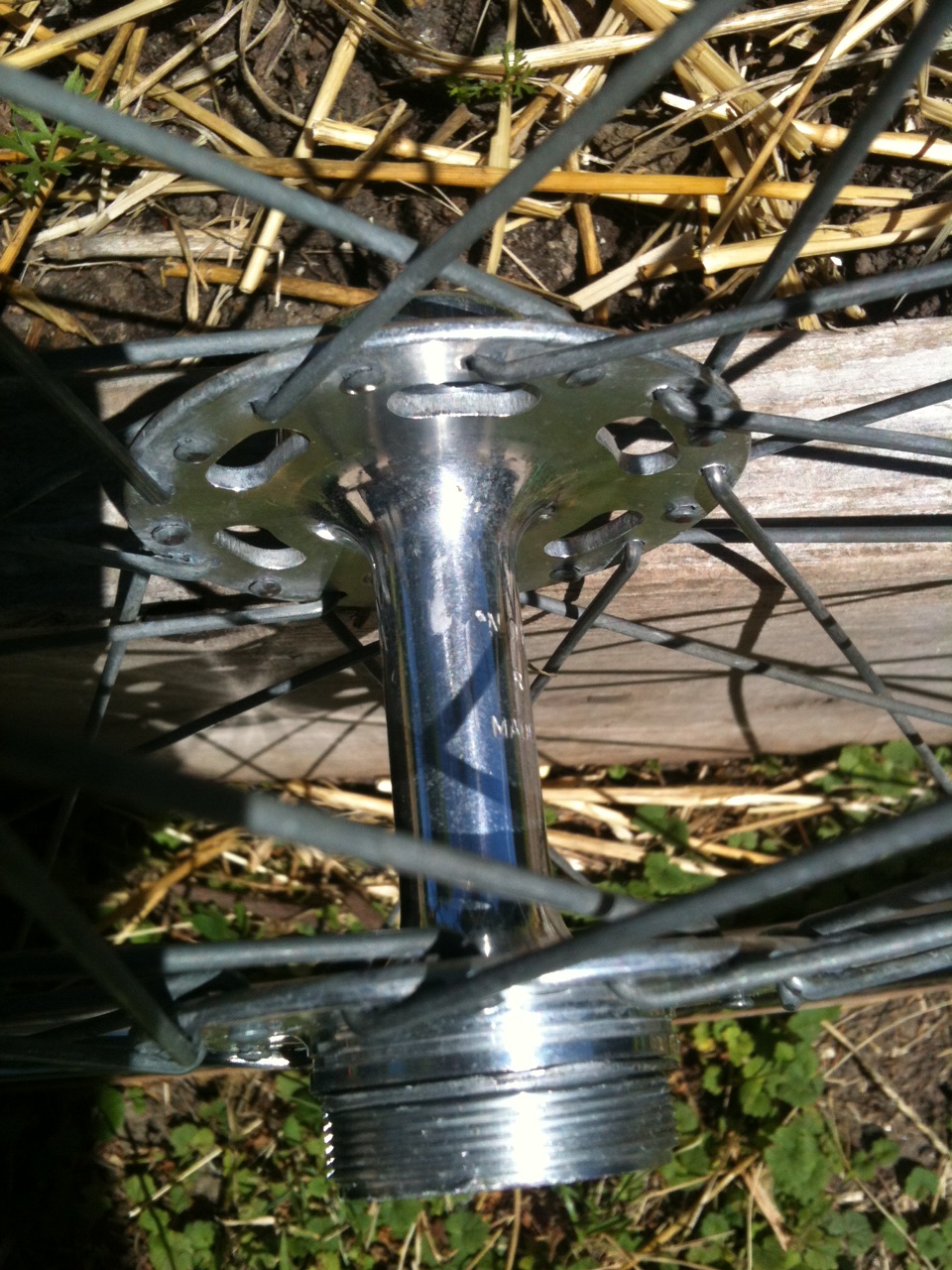

Rear Hub after First Polish

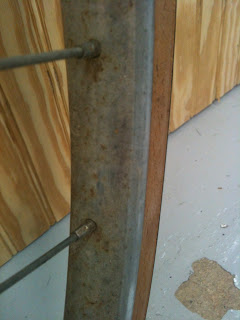

Rear Rim Before

Rear Rim After First Polish
     I gave the rear wheel a second coat of polish.  It turned out nice, it is not perfect because there is some rust pitting, but still turned out very nice.  I then greased the hubs, bearing cones and bearings.  I always add a coat of grease along the entire length of the wheel axle, this prevents corrosion.  The quick release wheel skewer was in rough shape, it had lots of rust and grease.  After buffing off the rust on the bench buffer and lubricating the skewer it turned out pretty nice.  I then placed the wheel on the bike to get a good look.  It looks very nice in place.  I like the chrome against the darker blue.  I spun the wheel on the bike and I am very happy with the smoothness of the spin.  I still need to true the wheel on the truing stand, it is not to bad, but can be better.  I do not put the new tires and tubes on the wheels until the bike is almost done.  No need to get new wheels dirty and scuffed.  Also it is better to work on wheel with the tire in place, it is easier to hang on to and does not slide all over the work bench.  Next i will be starting the front wheel.


Rear Wheel Components Cleaned & Polished

Rear Bearings Packed in Grease

Skewer Before Polished - Sorry for Poor Photo

Skewer Polished

Wheel Polished & in Place - Nice Polished

Wheel in Place Side View

Bike To this Point - Will get Better Photo

     The last of yesterday afternoon and the first of this morning I finished the front wheel. I did not post photos last night, I did not have time for it was Tuesday night ride night with friends.  I was worried the front wheel bearings and cones may have been damaged, they did not turn at all.  After disassembling and inspecting I found that the grease was rock hard and the cones may have been tightened to much.  After cleaning they show only a little wear.
     The front wheel rim had a some rust, I cleaned and polished of all the rust but there is a little rust pitting left.  The chrome on the rims is very thin, which is good for performance because it is lighter but also not as durable.  Overall the rim shines pretty well, the pitting is not very noticeable.  I polished the hub with two coats of polish and then assemble the wheel.
     I applied the grease and bearings, coated the axle and installed the bearing cones and lock nuts.  I then polished the Skewer.  It was heavily rusted, but polished wonderfully, I also added a few drops of oil to the Skewer.  I placed the wheel on the bike, and I am very pleased with the high polish against the polished chrome fork tips.  Polished chrome fork tips and chain stays has always been my favorite look. This bike does not have the chrome chain stays. I am also very pleased with the smoothness the wheel turns considering the way it did not want to turn before overhaul.
     I think I will move on to the drive train at this point.  I will clean the crank set, rear cassette and the derailleurs.  I do not know if the crank set should be polished, I think the finish is meant to be of a duller texture, but I will see after cleaning.  At this point all the bearing systems (Headset, Wheel Hubs & Bottom Bracket) are overhauled & Completed.

    More to come later.

Front Rim Polished & Unpolished

Before Front Skewer & Hub

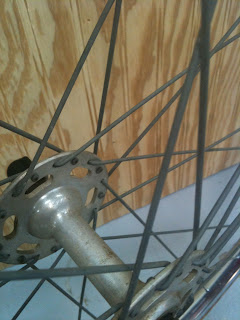

Front Hub Before

Front Hub Old Grease

Front Bearings Greased & Packed

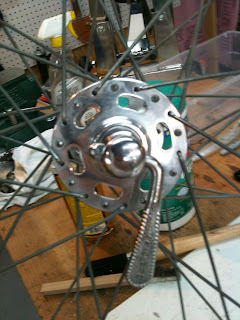

Completed Front Wheel & Skewer

Front Wheeled Polished & Installed

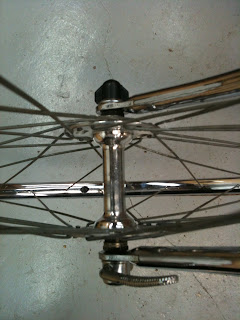

Front Wheel Installed - Love the Classic Chrome Look

Bike to This Point

     I finished work on the crank.  I disassembled the crank, all 18 parts, polished each bolt, bushing and spacer.  I did not polish the crank gears.  I do not believe the finish on the crank gears and arms is meant to polished.  I cleaned the cranks and they look really nice and are in very good condition.  I then greased and installed the crank bolts, and then installed the crank set back on the bike.  Its starting to look like a bike again.  I am very happy with the way the crank turned out, it has a very nice design, I believe it is a Suguno crank.
    I will be starting the derailleurs next.  Watch for more posts.

Dirty Crank Set

Dirty Crank & Bolts

Crank Disassembled

Crank Cleaned & Bolts Polished

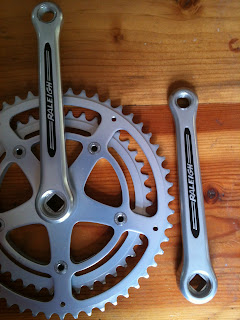

Crank Polished & Assembled

Crank Bolt Polished

Crank Polished & Assembled

Looking Like a Bike Again
     I was going to start the derailleurs as the last thing this afternoon, but instead I cleaned the freewheel and gear cassette and also polished the pie plate.  The pie plate is in bad condition, it was bent and had bad gouges from a derailed chain wedge between it and the cassette.  I straightened it the best i could using my vise and a ball peen hammer, I then polished it on the bench top buffer.  It came out pretty good, not perfect, but good.  The cassette I had to use the heavy duty cleaner.  It cleaned up nice.  I then installed the pie plate and screwed the freewheel back into place.  Always had a coat of grease to the freewheel threads.  This helps prevent the freewheel from freezing onto the wheel hub.  Tomorrow morning I will start with the derailleurs and chain, after that the brakes and then it will be time to start running cables and tuning the bike.  More photos tomorrow, Good Day..

Pie Plate Before - Bad Condition

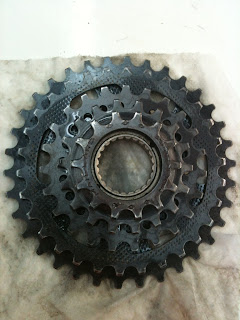

Freewheel & Cassette Cleaned

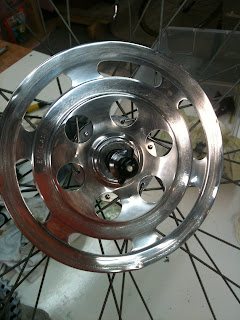

Pie Plate Repaired & Polished

Freewheel & Cassette Installed

Bike View

     After this mornings trail ride on my 1990s Specialized Rock Hopper modified to single speed I started work on the derailleurs.  The front derailleur went fast and turned out very nice.  It shines nice and after overhaul and lubricating the pivot points move very smooth.  The rear derailleur was a little more trouble some.  On this Sun Tour derailleur, to get to the upper jockey wheel you must unscrew the entire jockey wheel cage, but the jockey wheel cage would not budge.  I had to open the body and remove the tension spring, remove the rod and spray PB Blaster on it.  Eventually the cage came loose.
    Having to remove the cage this way took some time and assembly took time also.  After polishing and lubricating it took a lot of tweaking to get the derailleur to function correctly.  I then installed the derailleurs on to the bike.  While installing the rear derailleur I found why the pie plate was damaged,  When the rear derailleur is in the large gear position it rubs on the pie plate.  I will have to correct this when I install the derailleur cables and tune the shifting.  Next I will start on the brake calipers.  More to come.


Derailleurs Before Dirty

Front Derailleur Before

Rear Derailleur Before

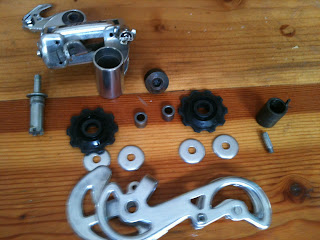

Rear Derailleur Polished & Disassembled

Derailleurs Completed

Derailleurs Installed

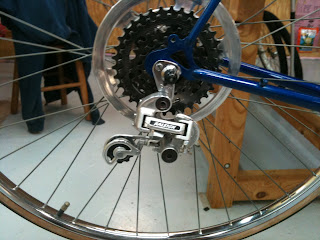

Rear Derailleur Installed

Front Derailleur Installed

     I got to work on the front brake.  It polished up nice, I always liked the look of these center pull brakes when polished to a high shine.  When assembling the front brake I noticed that the caliper was not functioning smoothly.  After inspection I found that the right caliper arm is bent.  I am working on a way to bend it back to where it should be with out braking it.  When I figure that out I will start on the rear brake.

Front Brake Before

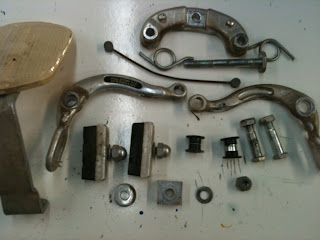

Front Brake Disassembled

Front Brake Polished

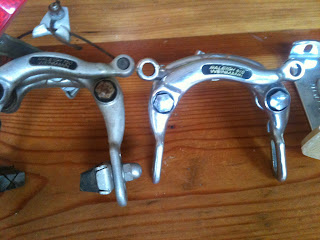

Front Brake Before & After
     One more post for today.  I repaired the bend in the front brake caliper arm by wrapping the arm in a towel and clamping the arm in the vise.  I then "gently" pried it back into place.  The caliper now pivots smoothly.  I then polished the rear brake and assembled it.  The rear brake had some deep rust on the pivot bolts.  The rust is polished away, but there is some pitting in the chrome.  Until later.

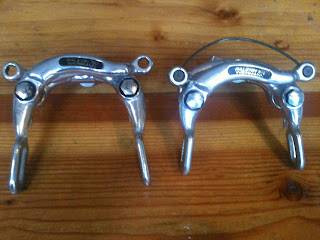

Front & Rear Brakes Polished

     Got back to work on the Raleigh this morning.  Spent the last three days in my home town in Upper Michigan.  It was wonderful weather and did some trail riding.  Got home at Midnight last night, so I had a little bit of a slow start this morning.
     Started with truing the wheels this morning.  The rear wheel had a pretty nasty curb jumping dent.  I pounded it out gently with a ball peen hammer on a piece off rubber over my  vise.  It mostly hammered out. It is not perfect, but defiantly good.  I then went on with truing the wheels.  All the spokes need tension, after that I got the wheel to less then 1/16 of an inch true.  Very straight for a wheel this age.
      With the wheel true I put on the new Tires tubes.  They are Kenda Gum wall tires.  A good match for 27 x 1 1/4 inch wheels from the 70s.  They look pretty nice on the polished out wheels.
     With the tires in place I started work on the shifter and shifter band, (I forget the technical name, I have always called it the Shifter Band.) it is the chrome band that goes on the down tube to hold the brake cables and housings in place.  I disassembled the shifters, cleaned and polished them and greased and assembled them.  I was not happy with the way the parts where polishing on the bench top buffer, so I used a brass wheel in my Dremil tool and then a buffing wheel.  This got the shifter and band polished nicely.  I did not polish the shift levers, like the crank they have a finish that is not meant to be polished.
     The only polishing left to do is the seat post and seat components.  But I am going to start cutting the new shifter housing and running cables.  I use Jag-wire cable housing.  Jag-wire is a very high quality housing which helps with smooth shifting and braking.  More photos to come.

New Kenda Gum Wall Tires

Rear Wheel in Stand - Sorry Poor Photo

New Tires on Bike

Shifter & Band Before

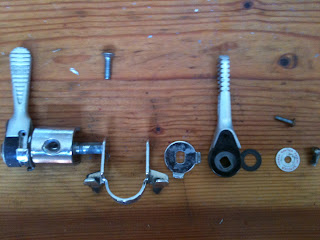

Shifter Exploded View & Polished

Shifter Installed

Shifter & Headset before

Shifter Band
Bad Spot on Frame Just Below Band
     Well our internet has been down all day with a few short power outages so I am just getting the rest of today's work up now.  I started work on running the cable housing.  I started by installing the brakes and new brake pads.  I also use Jag-wire brake pads, they work nice and at a fraction of the cost of Grey Matter pads.  I have to say I love the old look of the giant reflectors. (Yes, that makes me a dork.)  At this time I also installed the new brake levers.  I like these levers, they are very comfortable to ride on.
     I then cut the housing for the shift cables and ran the cables.  The derailleurs are running smoother then the day they where new.  Except for the rear pie plate getting in the way of the rear derailleur.  The only thing I can think of is this is the wrong pie plate for the bike.  I have gone through everything and it still does not fit.  I will have to come up with something to fix that.
     I then cut the housing for the brake cables and ran the cable.  I always grease the cables to help prevent corrosion down the road, you probably don't have to with these housing, but it can't hurt.  Later after the photos where taken I decided to take some slack out of the brake cable housing so they currently look a little neater then the photos.
     In the morning it will be time to finish tuning the brakes, clean the chain, polish out the seat components and take it for a test ride.  After the test ride when I know all is good I will put the bar tape on.  I am sure I am forgetting a few this that need to be done, but I will add those later.  Good Night.


New Brake Levers Installed

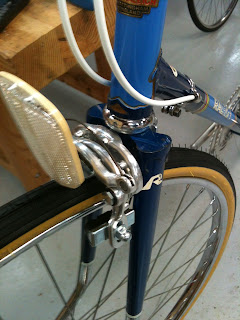

Cable Housing Front View - 1st Run


Front Brake View

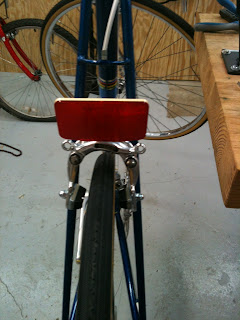

Rear Brake View

Brake Lever & Cable Housing Side View

     I finished off the bike this morning, except for the Pie Plate and Rear Derailleur rubbing in the high gear Problem.  I am baffled by it, all I can think is the pie plate is the wrong plate for the bike or a spacer was lost sometime back by the amount of damage to the pie plate.  I have a friend coming by in a couple of days, he is also going to take a look.
     Besides the pie plate problem, the bike rides very smoothly.  Everything shifts easy and smooth.  The bike stops very well, there is a slight vibration on occasion in the rear brake.  I think it will go away as the brakes are broken in.  I will keep working on braking them in over the next couple of days.
     I started the day by tuning the brakes, cleaning and installing the chain, polishing the peddles and polishing the seat components. The seat components polished nicely, I did not polish the seat rails, I did not want to get polishing compound on the leather or synthetic material.  I then took it for a test ride, it is a very nice ride, the free wheel is a little louder then I like, but it is smooth.  The low gears are very large, I found them to be almost to easy, they must be for some major mountain riding.
     With the test ride complete and all running smooth I went on to the handle bar tape.  In the pictures below you can see a layer of black tape.  I run black tape the entire length of the cable housing to hold it secure and also improve braking.  I then install the bar tape, this tape is synthetic gel tape, a very comfortable tape.  With the tape complete I cut the cables to length and added cable ends.
     I am very pleased besides the pie plate problem with the way this bike turned out.  Extremely smooth and comfortable ride.  Should have a lot of miles in it over the years.  I will be adding more pictures later.


Peddles Polished

Seat Components Polished & Installed

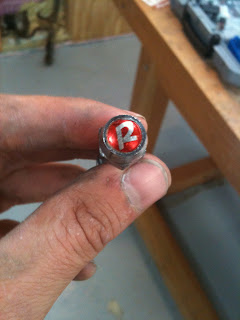

Seat post Bolt Polished

Black Tape & Bar Tape

Bar Tape Complete
Finished Bike Outside

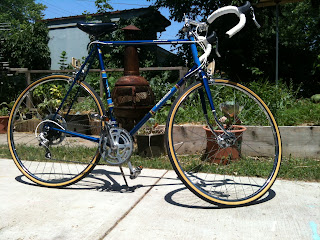

Finished Bike Outdoors Front View

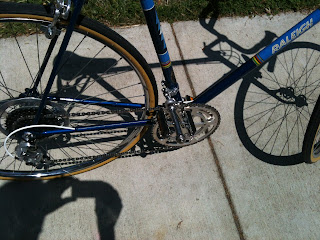

Finished Bike Drive Train View
Here are photos of before and after.  I really like this bike.  I also like the much cleaner neater look of the areo brake levers.  Hard to believe that the original color of the fabric bar tape was blue.  Very pleased with the results.  Thanks for looking!  I am looking for a photo of the brake view before and after.  Must be in the cloud somewhere.



Before Side View


1978 Raleigh Grand Prix Restored

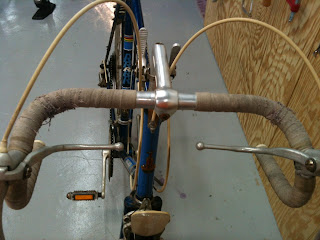

Before Front View


1978 Raleigh Grand Prix Restored


Before Derailleur View


1978 Raleigh Grand Prix Restored


Before Crank View

1978 Raleigh Grand Prix Restored

Before Headset View

1978 Raleigh Grand Prix Restored
